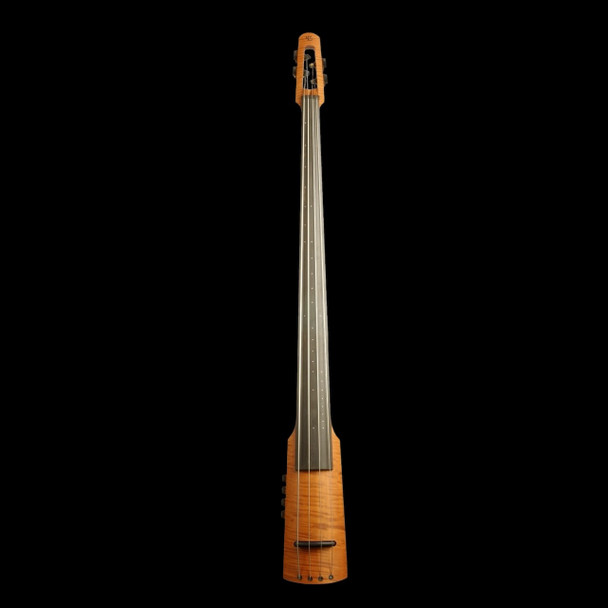

CR-T Series Upright Bass
- The “traditional” version of the NS Upright Bass
- Active electronics (18v) with advanced tone-shaping controls
- 4 or 5 string models
- Crafted in the Czech Republic
Overview
The “traditional” version of the NS double bass is set up to satisfy the needs of the experienced upright bassist. The standard 106 cm acoustic upright scale length is preserved to insure that fingering and string tension will be consistent with acoustic instruments. While the neck shape is traditional, the small body allows unrestricted access to the upper register of the fingerboard. A small brass button on the back of the neck provides a tactile reference for the traditional “D neck” position. Dot markers provide a subtle but effective intonation reference.
NS Electric Traditional Double Bass Strings by D’Addario™, specially designed for NS basses, are standard on both 4 and 5 string CR-T models. These deliver a classic upright tone, warm and percussive, with a great response to the bow. The bridge is raised to lift the strings above the fingerboard for action typical of the acoustic upright. Higher string tension and action make it possible to “dig in” like on an acoustic, with reserves of rich sound that can be eased back for a traditional tone, or brought forward for exciting new sounds.
The CR-T neck and body are made from select maple. The full scale fingerboard is graduated for consistent response from note to note, with adjustable relief and bridge height to suit all playing styles. Our Polar™ Bridge Pickup System combines great sound with directional sensitivity, for a rich and expressive response to arco and pizzicato technique.
An End Pin Stand is standard equipment with the CR-T series. The fully adjustable mono-pod design allows the player to set the instrument in a position like that of an acoustic double bass. The point where the end pin touches the floor can be easily adjusted so that the weight of the instrument is centered over the tip. This balances the instrument leaving both hands free for expressive play. The End Pin Stand Conversion Kit attaches to the optional CR Tripod Stand to hold the instrument upright for on-stand performance or when not in use.
Specifications
LENGTH: 132 cm (52″)
WEIGHT: 4.8 kg (10.5 lbs.); with stand & gig bag 8.2 kg (18 lbs.)
SCALE LENGTH: 106 cm (41.73″)
STRINGS: 4 or 5 (Low B or high C)
CONSTRUCTION: Solid rock maple body and neck, with a flame maple face. The neck has a traditional profile. A small brass pin on the back of the neck indicates thumb position.
FINISH: Traditional amber stain with clear semi-gloss polymer coating. Custom finish options are available for the CR-T Double Bass including Slate Gray, Quilted Maple, Poplar Burl and Zebrawood.
FINGERBOARD: Hand graduated, asymmetric relief, cascading dot pattern for position reference; 43.1mm (1.7″) wide at nut; 89.0mm (3.5″) max. width.
BRIDGE: Hard maple; radius 7.9cm (3.1″) string spacing 81mm (3.19″).
NUT: Radius 7.9cm (3.1″); string spacing 30mm (1.19″).
BRIDGE PICKUP: The Polar directional piezo pickup system responds selectively to either vertical vibration (for the sustained plucked sound, like an electric bass guitar), or lateral vibration (for dynamic bowing, and a percussive plucked sound).
ELECTRONICS: 18-volt active circuit by EMG. Mono output.
CONTROLS: (top to bottom)
Volume
Balance – counterclockwise for optimal pizzicato (plucked, sustained) sound, clockwise for optimal arco (bowed and percussive plucked) sound, center for both
Treble – boost and cut
Bass – boost and cut
TRUSS ROD: Powerful truss rod allows positive relief to provide optimal action.
TUNING MACHINES: Premium grade worm gear tuners; black finish.
STRINGS: Equipped with NS Traditional Bass Strings by D’Addario. Compatible with most standard upright bass strings.
